VW T6 Height: 1.99 m (with roof rack 2.04 m) – also T5 & T6.1

Short answer: According to factory data, a VW T6 is 1990 mm high (standard roof, tire size 205/65 R16 C). With a mounted Airholder roof rack, it is approx. 2045 mm – so around 1990 mm + 55 mm profile height including air gap. The same factory value of 1990 mm applies identically to VW T5, T6, and T6.1 – for Multivan, Caravelle, and California Beach, as well as for the Transporter panel van with a standard roof.

Important: The binding value for your specific vehicle is in the vehicle registration document (Zulassungsbescheinigung Teil I, Field G). Actual heights may vary by ±10–30 mm from the factory value depending on tires, suspension (e.g., 4MOTION, lift kit), and load.

In this article, you will learn:

• where the 1990 mm comes from and for which T-models the value applies;
• why the Airholder roof rack adds exactly 55 mm – and not less;
• how to measure exactly yourself whether you fit into your garage or underground parking;
• what an awning, roof tent, or solar panel additionally adds in height.

1. How high is a VW T6? (Factory data: 1990 mm)

From the Volkswagen drawing data (data basis), a vehicle height of 1990 mm is specified for the VW T6. This is a good starting point for orientation – in practice, the actual height may vary slightly depending on tires, load, and equipment.

All height measurements in this article refer to tire size 205/65 R16 C.

Important: For garages and parking garages, always the actually measured height of the vehicle counts, not the factory value.

2. Height VW T5 vs. T6 vs. T6.1 – are there differences?

In short: No, the factory height is identical across all three generations.

• VW T5 (model years 2003–2015) – standard roof: 1990 mm
• VW T6 (model years 2015–2019) – standard roof: 1990 mm
• VW T6.1 (model years 2019–today) – standard roof: 1990 mm

While the front end of the T6.1 was modified and the track width slightly widened compared to the T6, the roof height remained unchanged. So, if you're looking for the height of your T5 or T6.1: the factory value is the same as for the T6.

3. Height VW Multivan, Caravelle, California Beach and Transporter – what is the same, what is not?

For all passenger versions with a standard roof, the factory height is identical to the Transporter panel van with a standard roof – i.e., 1990 mm:

• VW Multivan (also known as "Bulli"): 1990 mm
• VW Caravelle: 1990 mm
• VW California Beach (without pop-top roof): 1990 mm
• VW Transporter Panel Van Standard Roof: 1990 mm

The VW California Coast / Ocean with a standard pop-top roof differs – its closed height is about 4–5 cm higher (around 1990–2030 mm depending on the model year). If you drive a California variant with a pop-top roof, check your vehicle registration document.

4. Width and length of the VW T6 – the most important dimensions at a glance

Those looking for "VW T6 height" often also need the other exterior dimensions. Factory data standard roof:

• Height: 1990 mm
• Width (without mirrors): 1904 mm
• Width with exterior mirrors: approx. 2297 mm – important for narrow garages!
• Length SWB (short wheelbase): approx. 4904 mm
• Length LWB (long wheelbase): approx. 5304 mm

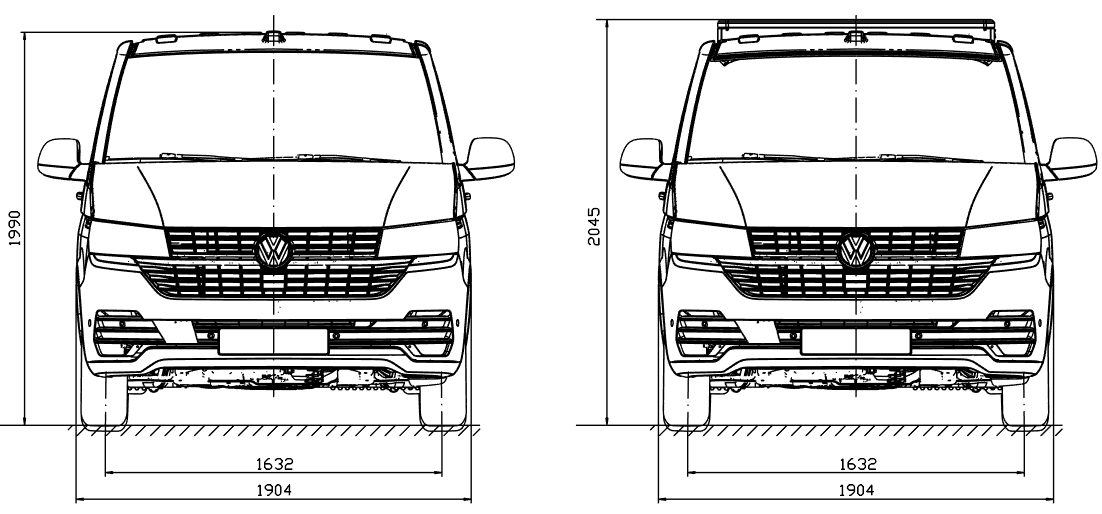

5. VW T6 Height with Airholder Roof Rack: Example Calculation (approx. 2045 mm)

For a roof rack, the total height depends on how high the system builds up – i.e., to the top edge of the profiles.

• VW T6 height (drawing data): 1990 mm
• Airholder build-up to top edge of profile: approx. +55 mm

Guide value total height VW T6 with Airholder roof rack:
1990 mm + 55 mm = approx. 2045 mm (≈ 2.045 m)

Note: This is a practical guide value. For entrances, always allow for a safety margin (see garage check below).

6. Why 30 mm air gap between roof and profile?

Airholder is designed so that there is deliberately a gap of approx. 30 mm between the roof skin and the underside of the profile. This has two clear advantages:

• Ventilation for solar modules: Solar panels need air circulation so that they store less heat and work more efficiently. The gap ensures clean rear ventilation between the roof and the panel.
• Better all-round usability: With the gap, the roof rack can be used more practically around its entire circumference – e.g., for cable management, cleaning, and access to accessories along its entire length.

7. Garage and car park: Does my VW T6 with roof rack fit through 2.00 m / 2.10 m?

Many entrances are tight. So that you don't drive to the last millimeter:

• Plan at least 30–50 mm safety margin.
• If in doubt, measure briefly – especially if you frequently use underground car parks or multi-storey car parks.

Quick orientation for VW T6 + Airholder (≈ 2.045 m):

• 2.00 m entrance: usually too low → do not drive through
• 2.05 m entrance: border area → measure + observe reserve
• 2.10 m entrance: generally uncritical, but still check
• ≥ 2.15 m entrance: usually no problem even with a roof tent set

8. How to correctly measure the real height of your VW T6

1. Park the vehicle on a level surface.
2. Check tire pressure (observe factory specifications).
3. Measure from the ground to the highest point:
   • with roof rack: to the top edge of the profile
   • with accessories: to the highest point of the accessories (e.g., roof tent shell, awning box)

Common influencing factors on the actual height:

• Tires and tire pressure (summer/winter, dimension)
• Load (can lower the vehicle minimally)
• Suspension (springs, dampers, lift kit or sagging springs)
• Accessories on the roof (awning, roof tent, solar panel, boxes)

9. Height with roof tent, awning or solar panel: what comes on top?

As soon as additional accessories are mounted, the total height often increases significantly more than just due to the roof rack:

• Awning: depends on model and holders – see Mounting an awning on the VW T5/T6.
• Roof tent: usually the biggest height jump – depending on the model, +120 to +300 mm when folded.
• Solar panel or box: highly dependent on mounting type and frame height – often +30 to +80 mm.

Practical tip: First measure the base (vehicle + roof rack), then add each accessory individually and measure again. This way you'll know for sure which underground car park and which car wash will still fit.

More on the maximum load of your roof can be found in the article VW Transporter T5/T6/T6.1: maximum roof load.

Frequently asked questions

How high is a VW T6, T6.1 or T5?

In the VW drawing data, 1990 mm is specified for all three generations with a standard roof. Depending on tires and equipment, the actual value may vary by ±10–30 mm.

How high is a VW T5 or T6 with a roof rack?

This depends on the roof rack. For Airholder, the guide value is: 1990 mm + approx. 55 mm = approx. 2045 mm to the top edge of the profile.

How high is a VW Multivan or Caravelle?

Both have the same factory height as the Transporter with a standard roof: 1990 mm. For the California with a pop-top roof, the closed height is approx. 4–5 cm higher.

How wide is a VW T6?

The body is 1904 mm wide, with exterior mirrors about 2297 mm. The latter is relevant for narrow garages and carports.

Does a VW T5 or T6 with a roof rack fit into a 2.00 m car park?

If the actual height is approx. 2.045 m, 2.00 m is usually too tight. Please always measure and allow for a 30–50 mm reserve.

Why does Airholder leave approx. 30 mm distance to the roof?

For ventilation (e.g., with solar modules) and to be able to use and access the roof rack more practically over its entire circumference.

How do I most reliably measure the actual height of my VW T6 or T5?

Measure from the ground to the highest point on a level surface (with roof rack: to the top edge of the profile). Tire pressure and tires can affect the height – if in doubt, measure briefly and allow for a 30–50 mm reserve.
